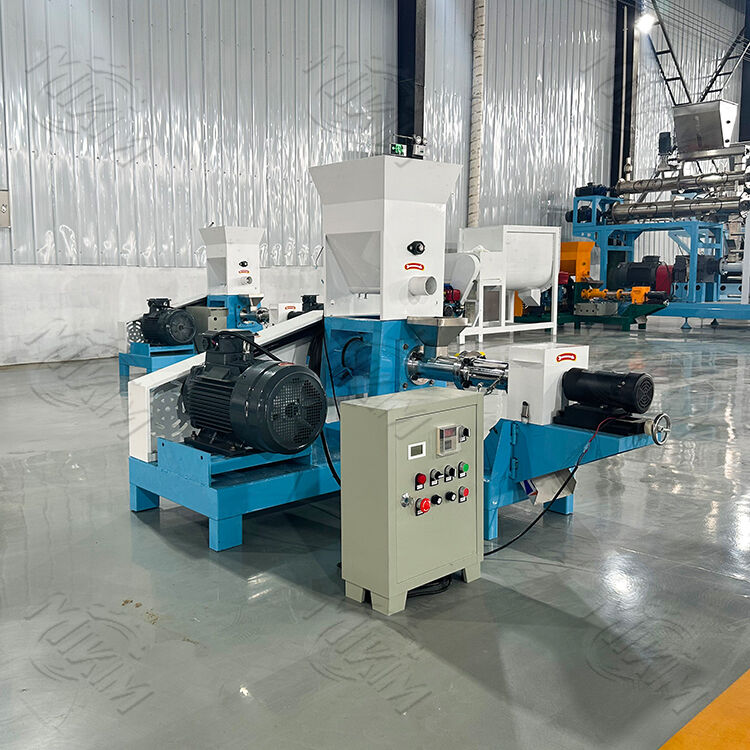

fish feed pellet making machine designed for pellet making in small medium feed mills research centers and professional aquaculture farms
Dettagli:
| Luogo di origine: | Cina |
| Marca: | MIKIM |
| Certificazione: | CE |
| Numero di modello: | DGP-40,DGP-60,DGP-70,DGP-85,DGP-90 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 set |
|---|---|
| Prezzo: | $1500.00 - 9500.00/ Set |
| Imballaggi particolari: | imballato tramite il pacchetto o il caricamento di legno dell'esportazione dal contenitore |
| Tempi di consegna: | 7-10 giorni di lavoro |
| Termini di pagamento: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Capacità di alimentazione: | 300 set al mese |
|
Informazioni dettagliate |
|||
| Voltageacity: | 380v50Hz | Materiali a vite: | 38 Crmoal |
|---|---|---|---|
| Heatingmethod: | Riscaldamento elettrico | Tipo: | EstrUder a vite singola |
| Applicazione: | Cibo di pesce | Fonte di riscaldamento: | Elettricità |
| Caratteristiche: | Continuo e automatico | ||
| Evidenziare: | fish feed pellet machine for aquaculture farms,small medium feed mill pellet maker,professional fish feed extruder with warranty |
||
Descrizione di prodotto
Fish Feed Pellet Making Machine
Poultry, fish, chicken, cattle, horse, rabbit, animal feed, pellet making machine
This is a multi-functional extruded feed machine suitable for fish, shrimp, and pets (pet food currently still tends to use pet-specific extruded feed). With the rapid development of my country's economy, the quantity of various extruded feeds for pets, fish, and shrimp is also increasing rapidly. These feeds are becoming increasingly commercialized, with larger pellets, and the market is booming. Traditional feeding methods differ significantly from pet food.
The machine's raw materials include corn, soybean meal, and animal manure, which can be directly fed into the machine for extrusion, producing various pellet feeds with fresh taste, unique shapes, rich nutrition, and a delicate texture, making them ideal for feeding fish, birds, dogs, ferrets, weasels, foxes, and other animals.
This equipment is suitable for small and medium-sized feed mills, research institutions, and professional aquaculture farmers. With the same feed formula, homemade extruded feed is 60-80% cheaper than commercial feed. The extruded feed pellets produced by this equipment are smooth and uniform, can float on the water surface for more than 12 hours without sinking, do not pollute water resources, and have a bactericidal effect, effectively reducing the occurrence of fish diseases.
Machine Systems Overview
- Feeding System: A screw feeder ensures uniform and continuous material flow into the extrusion chamber and prevents clogging.
- Screw and Barrel: The main components made of corrosion-resistant alloy steel with modular design and temperature control jacket.
- Cutting and Forming Equipment: Determines final product size and shape through interchangeable molds and high-speed rotary cutter.
- Control Mechanism: Intelligent system for precise parameter adjustment with real-time monitoring and fault alarm functions.
Product Parameters
| Model | DGP-40 | DGP-60 | DGP-70 | DGP-85 | DGP-90 |
|---|---|---|---|---|---|
| Capacity(kg/h) | 40-50 | 120-150 | 200-250 | 300-350 | 400-450 |
| Main motor(HP) | 12 | 25 | 30 | 35 | 50 |
| Feeder motor(kw) | 0.4 | 0.4 | 0.4 | 1.5 | 1.5 |
| Cutter motor(kw) | 0.4 | 0.4 | 0.4 | 0.55 | 0.55 |
| Screw diameter(mm) | φ40 | φ60 | φ70 | φ80 | φ90 |
| Machine size(m) | 1.4 * 1.25 * 1.2 | 1.47 * 1.12 * 1.25 | 2.05 * 1.4 * 1.3 | 2.15 * 1.5 * 1.3 | 2.2 * 2 * 1.35 |
| Weight(kg) | 360 | 560 | 740 | 850 | 1200 |
Final Product Display
Customer Visits
Qualifications and Awards
Frequently Asked Questions
What is the price of the fish food pellet extruder?
The price ranges from approximately $1,500-$35,000
Do you provide maintenance services for your customers?
Yes, we offer comprehensive after-sales maintenance services to our customers.
Product Video
Vuoi conoscere maggiori dettagli su questo prodotto
