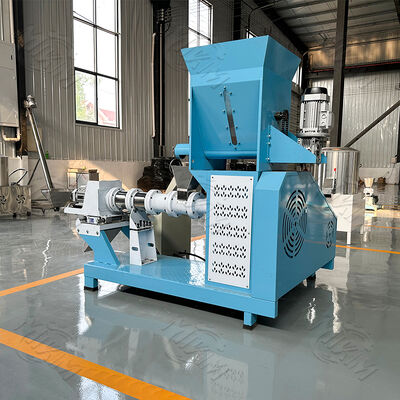

High efficiency and cost-effective Factory Price Dry Type Fish Feed Extruder Pellet Making Floating Fish Feed Extruder
Dettagli:
| Luogo di origine: | Cina |
| Marca: | MIKIM |
| Certificazione: | CE |
| Numero di modello: | DGP-40,DGP-60,DGP-70,DGP-85,DGP-90 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 set |
|---|---|
| Prezzo: | $1500.00 - 35000.00/ Set |
| Imballaggi particolari: | imballato tramite pacchetto di esportazione in legno o caricamento tramite container |
| Tempi di consegna: | 7-10 giorni lavorativi |
| Termini di pagamento: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Capacità di alimentazione: | 300 set al mese |
|
Informazioni dettagliate |
|||
| Stampi: | Varie forme possono essere scelte | materiale alimentare: | carne, fagioli, verdure e così via |
|---|---|---|---|
| Pezzi di ricambio: | 1 set | Operazione: | Funzionamento automatico semplice |
| Motori: | Marchi cinesi, Siemens, ABB | Tipo di elaborazione: | Estrusione |
| Invetro: | ABB | ||
| Evidenziare: | dry type fish feed extruder,floating fish feed pellet machine,factory price pet food extruder |
||
Descrizione di prodotto
High Efficiency and Cost-Effactory Dry Type Fish Feed Extruder
Electric Fish Feed Extruder Machine
Our advanced electric fish feed extruder machine offers superior performance and reliability for aquaculture feed production.
- Variable frequency feeding device with speed adjustment prevents hopper reef knots and ensures precise feeding
- Minimal residual material with easy cleanup and maintenance
- Novel design with simple structure for easy operation and parts replacement
- Primarily used for extruding corn, soybean and other raw materials
- Suitable for high-grade livestock and aquaculture feed production
- Available in small, medium, and large extruder sizes or complete units based on customer requirements
Final Pellet Production
Our fish feed production equipment can produce a variety of flower-shaped pellets. The product outlet features a frequency conversion speed control rotary cutting device with adjustable blade rotation speed to precisely control cutting speed and length.
Technical Specifications
| Model | DGP-40 | DGP-60 | DGP-70 | DGP-85 | DGP-90 |
|---|---|---|---|---|---|
| Capacity (kg/h) | 40-50 | 120-150 | 200-250 | 300-350 | 400-450 |
| Main Motor (HP) | 12 | 25 | 30 | 35 | 50 |
| Feeder Motor (kW) | 0.4 | 0.4 | 0.4 | 1.5 | 1.5 |
| Cutter Motor (kW) | 0.4 | 0.4 | 0.4 | 0.55 | 0.55 |
| Screw Diameter (mm) | φ40 | φ60 | φ70 | φ80 | φ90 |
| Machine Size (m) | 1.4×1.25×1.2 | 1.47×1.12×1.25 | 2.05×1.4×1.3 | 2.15×1.5×1.3 | 2.2×2×1.35 |
| Weight (kg) | 360 | 560 | 740 | 850 | 1200 |
Packaging and Shipping
MIKIM prioritizes machine safety during transportation. Before delivery, each machine is wrapped with plastic film to prevent water, moisture, and rust, and secured with metal framing. Complete container reinforcement ensures safe transit, with MIKIM providing comprehensive support throughout the entire shipping process.
Our Services
- Detailed introduction of wet type advanced design fish food extruder machines based on client capacity requirements
- Comprehensive information sharing including detailed pictures, videos, and technical specifications
- Custom design of floating fish food extruding lines
- Assistance with suitable floating fish feed formulations
- Comprehensive instruction manuals and operational videos for machine operation
